Adriatico’s



Project Name: Adriatico’s New York Style Pizza



Year Completed: 2011



Point of Specification: Rack Draft Services



Profiles Utilized: SKSTCS / DKSRCS



Cooler Size: 105″ W x 105″ D



Storage Capacity: 48 Kegs / 42 Cases

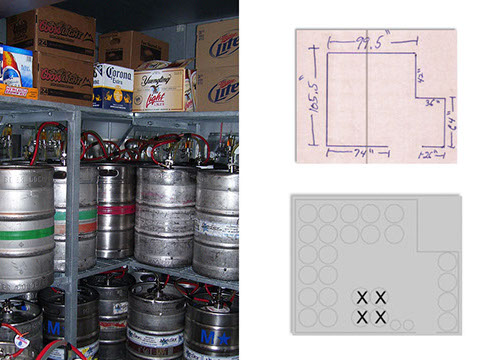

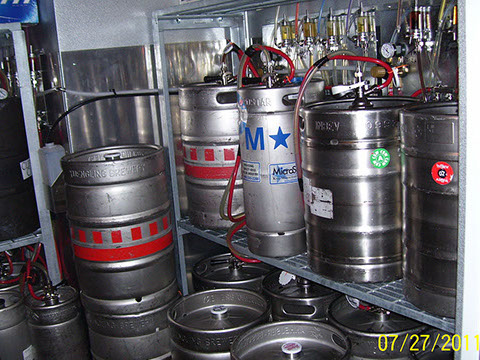

Dealer’s customer required additional beer lines to be installed. The walk‐in beer cooler’s floor space was being utilized for kegs and cases already. There needed to be a way to store more kegs in an already cramped cooler, and provide a safe working aisle for the customer and employees. Dimensions Received: Field dimensions (at right) were received from dealer. Evaporator coil location is door wall left; dimensions of 46”W x 12”H x 12”D. Beer conduits (small “o”) are located along the floor inside door wall left; directly beneath evaporator coil. The final design for the cooler safely holds 44 tappable kegs on and directly under the shelf with 42 cases above. An “L‐shaped” Double Deep Keg Shelf with 2FT Deep Raised Case Shelf occupies the back and left walls. A Single Deep Keg Shelf with Raised Case Shelf occupies the right wall, just inside the door.
